RY Guitar/Dinky AC-5 type

owner: Shin

2021.12.21: The body was left over in the workshop and made from spare parts I had on hand and a neck that happened to be in Warmoth's showcase.
Only the PU, bridge, and battery box were prepared separately.

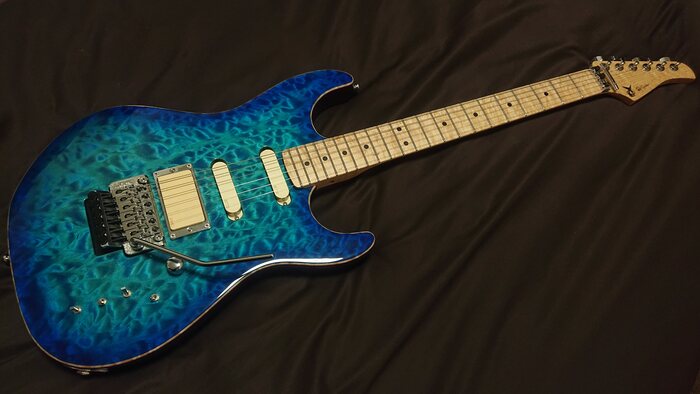

The body is an alder body with a brown body back to make it look like a maho body, based on a sample of the blue burst color from a gallery listing.
I could find some dark blue or greenish blue burst on the net, but I couldn't find a see-through blue AC-5 with vivid coloring.
I wanted to use chrome parts, so I decided to use this color because I thought it would be a good match.
2021.12.26: Wiring work is completed.
The rear direct switch needs a circuit to force the selection of the preamp, so I used pin 12.
The neck is a 59 shape and the nut width is 43mm, so the grip is similar to a Les Paul.
2022.9.16: I installed 89 in the rear to study the wiring, but the difference of output made me think it was not so convenient to use, so I replaced it with 81.
I also replaced the escutcheon with a chrome metal one to give it a more unified look.

Posted on Dec 22, 2021
brand
year

2021

madin

USA production → Japan incorporation

sound features

Since it is an EMG, I feel noise in a different bandwidth than usual, but I think the overall sound is more trebly than the original EMG and passive mixed model.

body material

Quilt Maple Top/Alder Back

body finish

polyurethane

neck material

HIGH GRADE BIRDS EYE MAPLE

fingerboard material

HIGH GRADE BIRDS EYE MAPLE

tuning machenes

GOTOH SGE-07 L6

number of frets

22(#6105 Stainless Steel)

scale length

Long

pickups

EMG SA/SA/81

controls

1Vol,PU ON/OFF SW x3,Rear PU Direct SW

bridge

Schaller S・FRT-2 37/R3

category

Electric-Solid-Body-Guitar
