RY Guitar/Dinky with PG Jim Burst
owner: Shin
2022.3.1: When I received the guitar you produced for me, you told me you were not sure if you wanted to sell it, so I purchased it.

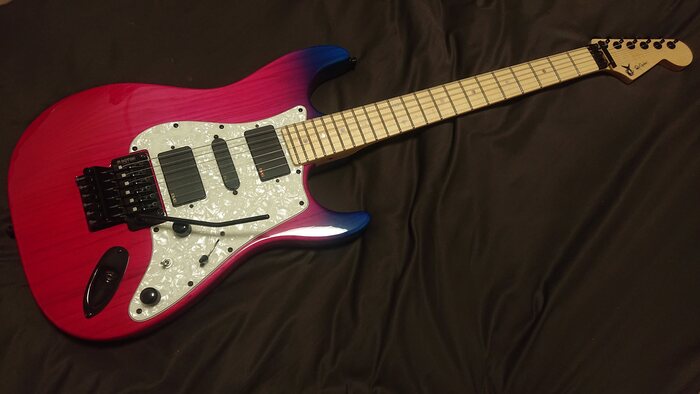

The pickguard has been modified with a design that reflects the original manufacturer of this color.
I asked him to leave the PU off because I have a lot of my own stock.
The neck has a beautiful vertical grain with a wide flame grain, and the side dots are Luminray and the position mark is Pink Mother of Pearl, which matches the body color and is not seen in many other products on the market.
The insert block and joint plate are made of KTS titanium.

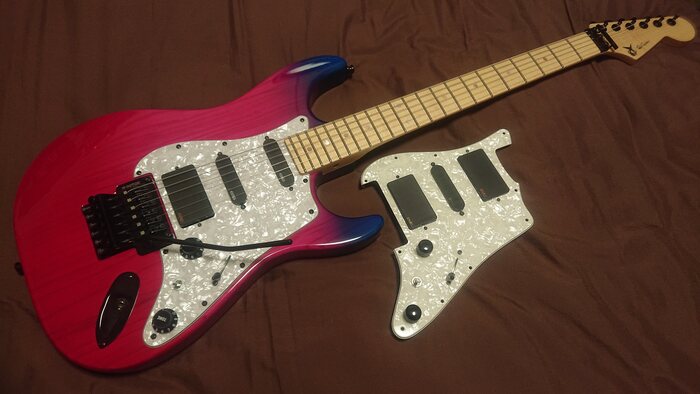

2022.3.9: A battery box was added at the workshop, the stock pickguard was modified, and another new one was made with the HSH layout based on it.
SSH extended the rear hum to accommodate an EMG and relocated the Vol and added a mini-switch.
I have wired it as a toggle switch in case I had never tried 18v drive before and was not happy with it.
2022.9.16: I was going to install a passive circuit, but since I added a battery box, I changed it to HSH with the active circuit.
I was afraid of the noise and extra load on the amp when switching from 18v to 9v, and I also have other guitars that I would have to switch to if I actually wanted to switch.
Instead, I installed the 89 on the front PU inverted and used it as a switch to switch from SA to 85 mode.
When it is down, it is wired to run in SA mode, so it can be used as SSH for everyday use, and when it is up, it can be used as if the front is boosted.
I had a 3S PG made as an experiment, and I tried using a white logo F.G.I. Technology 3S with 1vol, 2tone 18v drive. It sounded interesting, but the distortion was so devastating that I immediately switched back to the HSH specs.
I also learned that only 1 tone or 1 vol is enough for the active mode because I could not feel any change in tone unless I turned down the volume even if I set it to 2 tones.
I also changed the pegs from magnum lock to normal knobs with 05 specs.
2023.9.16: I replaced the front PU with 89R and unified the direction of the logo.
2024.10.10: I put SA-X on the center, but I found out that the concept was originally to have 18v sound with 9v drive, so I replaced it with SA and unified all the appearance with the old logo.
brand | |
---|---|
year | 2021 |
madin | USA production → Japan incorporation |
sound features | I wondered whether to use 81 for the rear since it is mainly for SSH layout-like usage, but I decided to continue to use 85 for the rear considering the balance when using the 89 in 85 mode on the front.
|
type of gear | Dinky Stratotype |
body material | Ash 2P |
neck material | Quarter Sawn Maple |
fingerboard material | Maple |
tuning machenes | GOTOH SG360-05 |
number of frets | 22(#6100 Stainless Steel) |
scale length | Long |
pickups | EMG 89R/SA/85 |
controls | 1Vol,1Tone,5way Lever Switch,Mini SW with Front PU SA→85 mode selector, |
bridge | GOTOH 1996T/Floyd Rose Original R2 |
category | Electric-Solid-Body-Guitar |
